We Install Strong, Safe, and Space-Savvy Tyre Racking Systems in Dubai, UAE

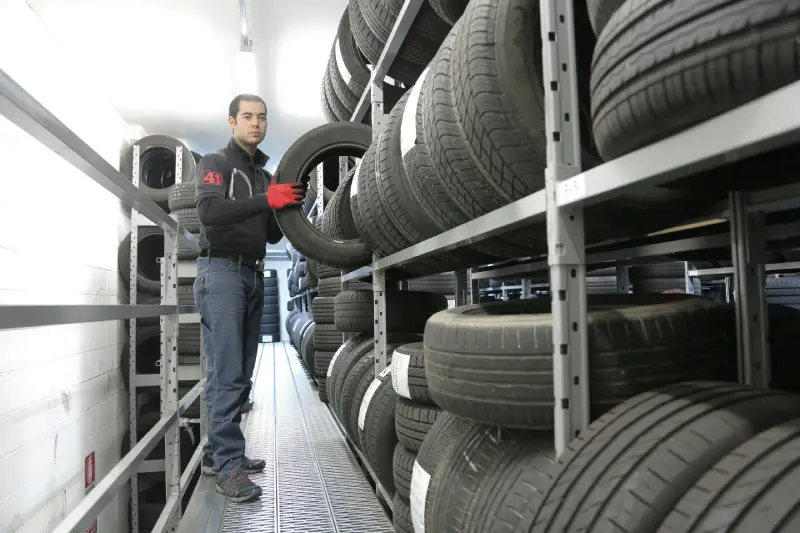

A tyre racking systems is a shelving setup made specially to store tyres of various sizes (car, truck, motorcycle) vertically or horizontally.
Almost every warehouse, auto workshop, tyre shop, and distribution center uses it.
Instead of stacking tyres on the floor, which wastes space, tyre racks hold them properly. They also support the tyre shape, so they don’t bend, crack, or lose form.
These systems usually come with horizontal beams or curved supports, allowing tyres to be stored upright or slightly angled. This helps with air flow and makes picking tyres faster.
Tyre racking systems also improve safety.
Fewer tyres lying around means less risk of trips, falls, or sudden collapses. Plus, inventory checks become easier and quicker.
Tyre Racking Systems Planned, Built, and Installed Right
Easy Way Racks specializes in tyre racking systems that are built around how tyres are actually stored, moved, and accessed every day.
We don’t push standard layouts. We first study your space, tyre sizes, weight loads, and handling flow, then design a system that fits your operation properly.
We handle everything in one place—design, material supply, installation, repair, and even extensions to existing tyre racks.
Our systems are made using pallet racking and long-span shelving components, so they stay strong, stable, and safe over time.
Based in Dubai, our services are available in all major UAE cities, including Dubai, Abu Dhabi, Sharjah, and Ajman. We can even serve Oman.
Our goal is simple: organised storage, safer handling, and faster operations.
Need Strong, Safe Tyre Racks? We Can Help.
What Are Different Types of Tyre Racking?
It Is Best To Align This Section In Centre
The options to store tyres are virtually unlimited in the UAE, but which system you should go for depends on space, volumes, types of tyres, and handling needs.
Some common tyre racking systems Easy Way Racks can install for you are these:
Single-Deep Static Tyre Racking
This is the most basic tyre storage system. One set of tyres is stored side by side on a single shelf, usually four tyres per level.
It offers clear visibility, quick access, and simple handling, making it ideal for low to medium storage needs.
Double-Deep Static Tyre Racking
In this setup, tyres are stored in pairs, with one set placed behind another on the same shelf.
It reduces aisle space and improves storage density, though access to rear tyres requires extra handling.
It is a cost-effective option.
Quad-Deep Dynamic Tyre Racking
Tyres are stored in a single channel on roller tracks, one behind the other.
When a tyre is removed, the remaining tyres roll forward automatically.
This system saves space and makes picking easier and faster.
Mobile Tyre Racking Systems
Racks are mounted on mobile bases, and only one aisle is opened at a time.
This can increase storage capacity by up to 85% for single-tier and over 100% for multi-tier installations.
Silo-Design Tyre Storage
Stationary tyre racks can be integrated with roof and wall coverings, creating a complete storage structure.
This design maximizes space, improves safety, and works best for large, high-volume tyre warehouses.
How Tyre Size Affects Racking Sizes?
Tyre size determines rack height, beam length, and depth.
For example, larger, heavier tyres need taller uprights, longer beams, and deeper racks for stability, while smaller, lighter tyres fit compact racks.
In the UAE, these are common tyre types and racking sizes needed for each:
| Tyre Types & Specifications | Racking Sizes & Specifications | |||||
|---|---|---|---|---|---|---|
| Type | Size Example | Applications | Diameter (in) | Upright Size (ft) | Beam Size (ft) | Depth (in) |
| Passenger (P-Metric) | P205/55R16 | Cars, SUVs, crossovers | 24.9 | 8–12 (H) 3–4 (W) |
4–8 | 12–18 |
| Motorcycle | 180/55ZR17 | Motorcycles, scooters | 25.0 | 6–10 (H) 2–3 (W) |
3–6 | 10–14 |
| Special Trailer (ST) | ST205/75R14 | Boat trailers, utility trailers | 26.1 | 8–12 (H) 3–4 (W) |
4–8 | 12–18 |
| Light Truck (LT) | LT265/75R16 | Pickups, vans, towing vehicles | 31.6 | 10–14 (H) 4–5 (W) |
6–10 | 18–24 |
| High Flotation | 35x12.50R17LT | Off-road vehicles, large trucks | 35.0 | 12–16 (H) 5–6 (W) |
8–12 | 24–30 |
Easy Way Racks can install tyre racking systems of any size as per the tyre types you store at your premises.
We assess tyre specifications, evaluate storage requirements, select appropriate rack type and specifications, and install the best system at your place.
We Supply, Install, and Supervise Your Tyre Racking System
At Easy Way Racks, we don’t just provide tyre racks; we make sure they work perfectly for your space, tyres, and operations. We can handle every step in the process.
- We provide a team of tyre racking experts who know tyre handling and storage inside out.
- We supply all materials, tools, and equipment. From beams to supports, rollers, and shelving.
- We adapt rack height, depth, and layout based on your tyre sizes and storage needs.
- We supervise installation with an expert supervisor who guides the project from start to finish.
- We perform rack safety inspections, checking every bolt, beam, and upright for stability.
